Easy Operation Remote Control Benchtop Temperature Humidity Test Chamber
The Bench-top temperature and humidity test chamber is widely used in scientific research, research institutes, quality inspection institutes and other industries to do warm and humid heat tests of electronic and electrical products, materials, parts, equipment, etc., alternating heat test and constant temperature test, etc. Also could do high and low temperature routine tests, low temperature storage, in order to evaluate the performance of the sample under given environmental conditions.
Product features:
1) Compact design
2) Best space use and combination selection
3) Colored LCD touch screen
4) Mobile app/computer remote control
5) Noise as low as 50dB
Product details display:

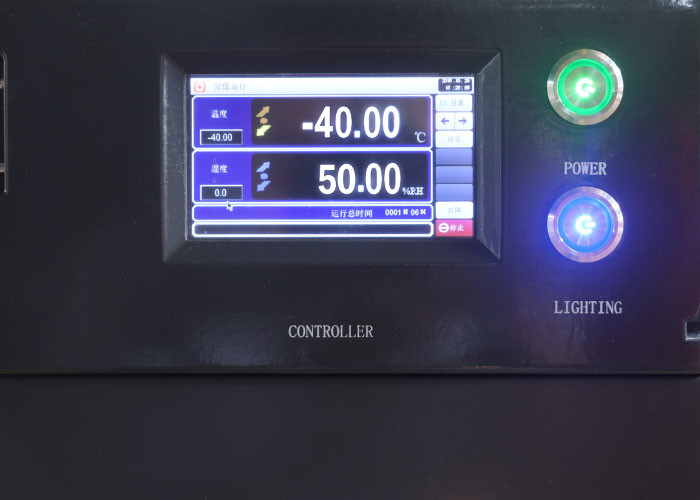

1. programmable touch screen. Display the Setting value(SV) of temperature and humidity, Present value (PV) of the temperature and humidity.
2. lighting button in the control panel.
3. Stainless steel inner chamber, with height adjustable sample racks; Heat resistance silicone seal.
4. Equip with interface to remote control with PC, software provided.
Specification Data:
| Model | SMC-22-CC | | Temperature | Temperature range | -40℃～150℃ | | Temperature fluctuation | ±0.5℃ | | Cooling rate | 150.0℃～25.0℃ Cooling rate 1.0～2.0℃/min | | 25.0℃～-40.0℃ Cooling rate 0.7～1.5℃/min | | Heating rate | -40.0℃～150.0℃ Within about 60 minutes 3.0～5.0℃/min | | Temperature uniformity | ±1.0℃ (-40.0℃～100.0℃) | | ±1.5℃ (100.1℃～150.0℃) | | | Humidity range | 20.0%RH～98.0%RH | | Humidity | Humidity fluctuation | ±1.0% RH | | | Humidity uniformity | ±2.0％RH | | | Internal material | SUS304 stainless steel(1.2mm) | | Material | External material | cold-rolled plate(1.2mm),powder coating | | | Heat insulation | polyurethane foam(100mm)+glass wool(10mm) | | | Fan | Centrifugal fan(Impeller Fan) | | | Refrigeration compressor | hermetic compressor(Tecumseh) | | | Cooling mode | air cooling | | | Refrigerant | R404A, R23, R508 (optional R449A) | | | Evaporator | finned-tube exchanger | | | Heater | nickel chrome strip heater | | | Humidifier | Steam Humidifier | | Size | Interior(mm) W*H*D | 300x300x 250 22.5L | | Exterior(mm) W*H*D | 480x835x990 | | Weight | 95kg | | Working Temperature | +5 ~ 35℃ | | Power supply | 220V/AC 50/60Hz 12A | | Controller | Standard: Sanwood Controller | |
