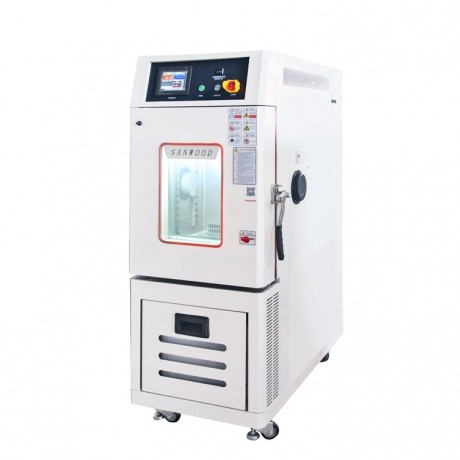

Programmable Constant Temperature and Humidity Chamber, Enviromental Test Chamber
Programmable Constant Temperature and Humidity Test Chamber is widely used in scientific research, research institutes, quality inspection institutes and many industries to do warm and humid heat tests alternating heat test and constant temperature test, etc. Also could do high and low temperature routine tests, low temperature storage, in order to evaluate the performance of the sample under given environmental conditions.
Sanwood Temperature and humidity test chamber meet requirements of international standard (IEC, JIS, GB, MIL...). in order to achieve International quantum measurement procedures consistency (including test steps, conditions, methods). To avoid different cognitive, and reduce uncertainly factors scope of measurement.
Product features & Specifications:
| Model | SMC-80-CD |
| Temperature | Temperature range | -70℃～180℃ (Available CA:0℃～180℃; CB:-20℃～180℃； CC:-40℃～180℃; CD:-70℃～180℃) |
| Temperature fluctuation | ±0.5℃ |
| Cooling rate | 180.0℃～25.0℃ Cooling rate 2.0～3.0℃/min |
| 25.0℃～-40.0℃ Cooling rate 1.0～2.0℃/min |
| -40.0℃～-70.0℃ Cooling rate 0.7～1.5℃/min |
| Heating rate | -70.0℃～180.0℃ Within 60 mins 3.0～5.0℃/min |
| Temperature uniformity | ±1.5℃ (-40.0℃～100.0℃) |
| ±2.0℃ (100.1℃～180.0℃ or -40.0℃～-70.0℃) |
| Humidity | Humidity range | 20.0%RH～98.0%RH |
| Humidity fluctuation | ±1.0% RH |
| Humidity uniformity | ±2.0％RH |
| Size | Interior size(mm) W*H*D | 400*500*400 |
| Volume(L) | 80L |
| Working Temperature | +5 ~ 35℃ |
| Power supply | 220V AC 50/60Hz 22A |
| Controller | Standard: Sanwood customized controller |
Chamber details:
1. Circuit in UK standard.
2. two stage refrigeration.

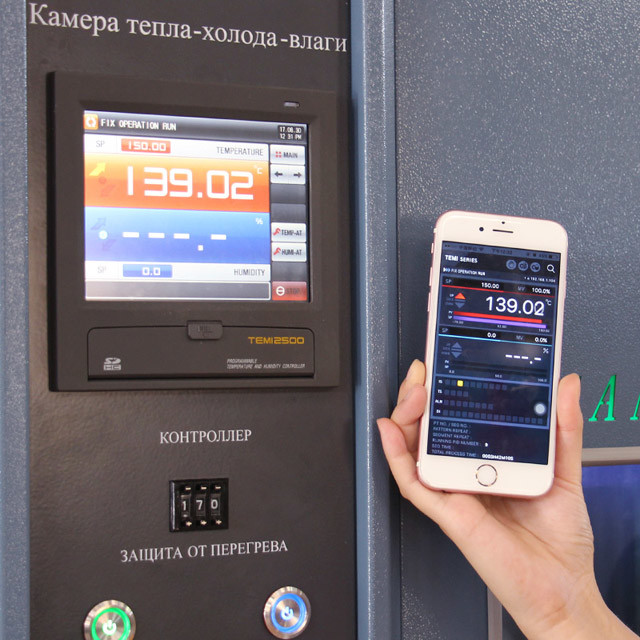

3. Remote control to PC or mobilephone.
Customized Optionals:
1. Automatic water filling system
2. Explosion-Proof safety devices
3. Humidity control range: 10%RH ~ 98%RH
4. Power supply: Customized to any country
5. Humidity sensor: wet-dry bulb or electrical
6. New refrigerant: R449A, R508 Available
7. Cooling rate and heating rate: customized available
8. Controller: Sanwood self developed controller, or other brand available
9. Multi-point temperature monitor
Welcome to inquiry info@sanwood.cc for more details.
