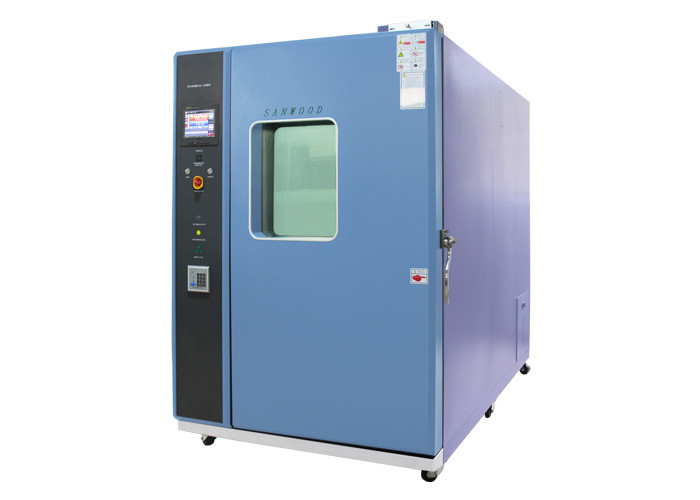

Reach-in Temperature Humidity Test Chamber For Electronic Devices
SANWOOD Reach-in Temperature Humidity Test Chamber, also named landing type climatic test chamber, environmental chamber, Constant temperature humidity test chamber, humidity test chamber, is ideal for steady state temperature and humidity test, cold test, heat test, damp heat test, thermal cyclic tests, storage and stability test, etc.
Sanwood SMC-series is the standard floor-model temperature test chamber with optional humidity capability with internal working volumes from 1000 L to 8000 L. Temperature ranges from -70C ~180C, with various heating /cooling rate available.
Standard Compliance:
GB/2423.1-2008 (IEC60068-2-1:2007) low temperature test method AB.
GB/T5170.5-2008 damp heat test equipment.
GJBl50.4 (MIL-STD-810D) low temperature test method.
GB2423.3-93 (IEC68-2-3) Test Ca: Constant damp heat test method.
GB2423.4-93 (IEC68-2-30) Test Db: Alternating Damp Heat Test Method
Sanwood temperature humidity test chamber features:
1. Energy-saving and compact design
2. Programmable controller, realise the tests run automatically. No need operator stay beside the chamber always.
3. Adopt module design for the machinary, easy to troubleshooting.

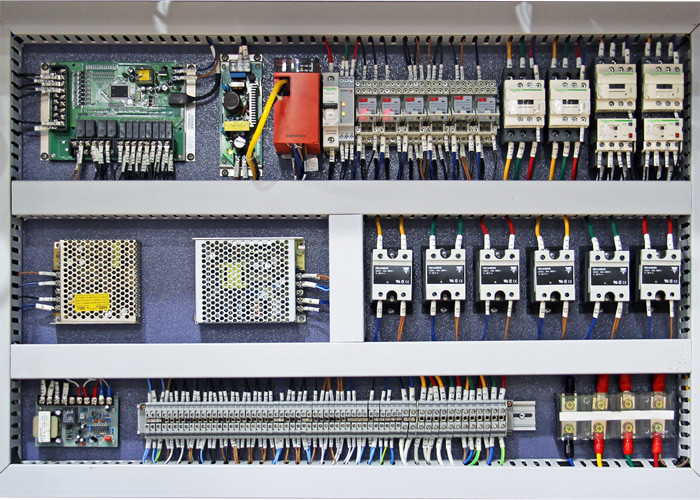

4. International standard circuit system, neat and better management

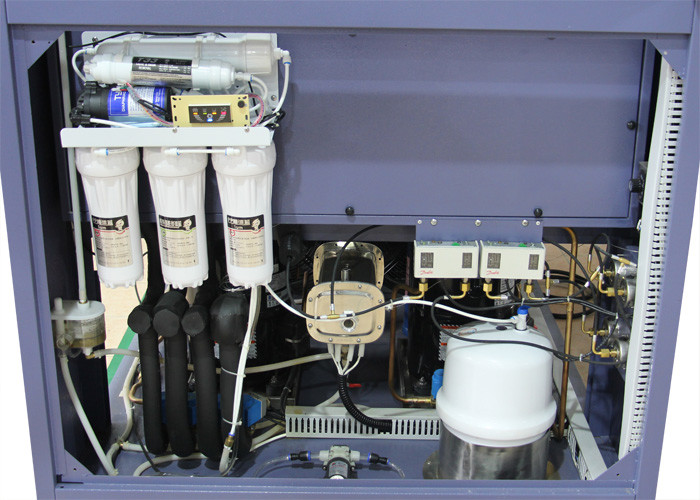

5. Standard configuration with 2 cable ports, water filtration system
6. Customized available for sizes and models.
Technical Specification
| Model | SMC-1000-CC | SMC-1800-CC | SMC-2520-CC | SMC-3600-CC | SMC-5000-CC | SMC-8000-CC |
| Temperature | Temperature control range | -70℃～180℃ (A:0℃～180℃;B:-20℃～180℃；C:-40℃～180℃;D:-70℃～180℃) |
| | Temperature fluctuation | ±0.5℃ |
| | Cooling rate | 180.0℃～25.0℃ Cooling rate 2.0～3.0℃/min 25.0℃～-40.0℃ Cooling rate 1.0～2.0℃/min -40.0℃～-70.0℃ Cooling rate0.7～1.5℃/min |
| | Heating rate | -70.0℃～180.0℃ Within 60 mins 3.0～5.0℃/min |
| | Temperature uniformity | ±1.5℃ (-40.0℃～100.0℃) |
| | | ±2.0℃ (100.1℃～180.0℃or-40.0℃～-70.0℃) |
| Humidity | Humidity control range | 20.0%RH～98.0%RH |
| | Humidity fluctuation | ±1.0% RH |
| | Humidity uniformity | ±2.0％RH |
Material /
components | Internal material | Adopts 1.2mm thickness stainess steel(SUS304) |
| | External material | Adopts 1.2mm thickness Cold rolled steel sheet / powder spraying |
| | Heat insulating material | 100mm thickness polyurethane plate＋10mm thickness mineral wool |
| | Fan | Centrifugal blower |
| | Compressor | Fully-closed/
Semi-closed | Semi-closed | Semi-closed | Semi-close | Semi-closed | Semi-closed |
| | Condenser | Air cooling,
water cooling | Air cooling,
water cooling | Water cooling | Water cooling | Water cooling | Water cooling |
| | Refrigerant | R404A,R23,R508 |
| | Evaporator | Fin - and - Tube Heat Exchanger |
| | Heater | Nickel chromium alloy heating wire |
| | Humidifier | Steam humidifier |
| Size | Interior size(mm)W*H*D | 1000*1000*1000 | 1000*1500*1200 | 1200*1500*1400 | 1200*2000*1500 | 1500*1800*1850 | 2000*2000*2000 |
| | Outer size(mm) W*H*D | 1200*1550*2450 | 1200*2000*2650 | 1400*2000*2850 | 1400*2350*2950 | 1700*2150*3300 | 2300*2450*3600 |
| | Volume(L) | 1000L | 1800L | 2520L | 3600L | 5000L | 8000L |
| Power supply | 380V AC 50/60Hz |
| Controller | Sanwood programmable controller, with Ethernet port |
